In noisy environments or large facilities, it is often handy to use an external signal device to notify your employees of shift starts, breaks, and lunches. The TimeSource Signal Control Module allows you to hook up bells and horns to your TimeCalculator hardware that will activate based on a programmed schedule. Each clock can control up to 8 different bells and 36 different ringing times. The electronic specification for the bell ringing circuit is 24VAC-110VAC, 3 Amps Max. Bells and Horns are not included with this module.

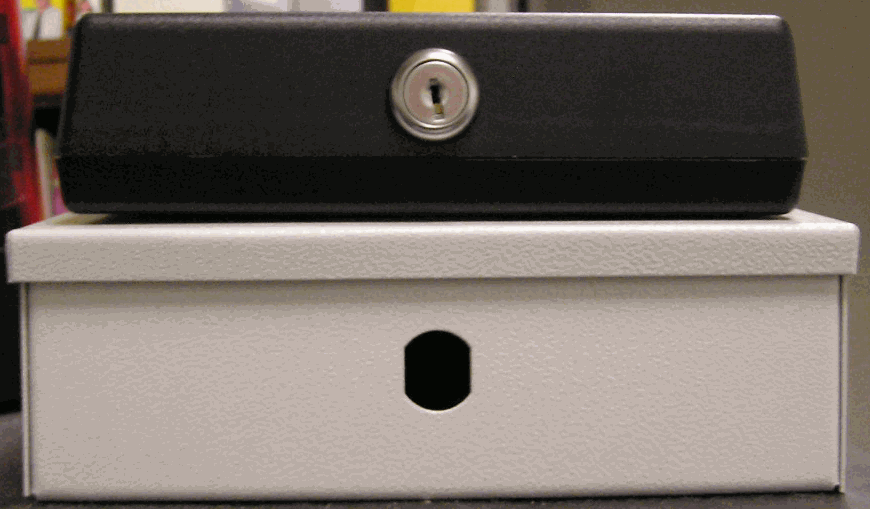

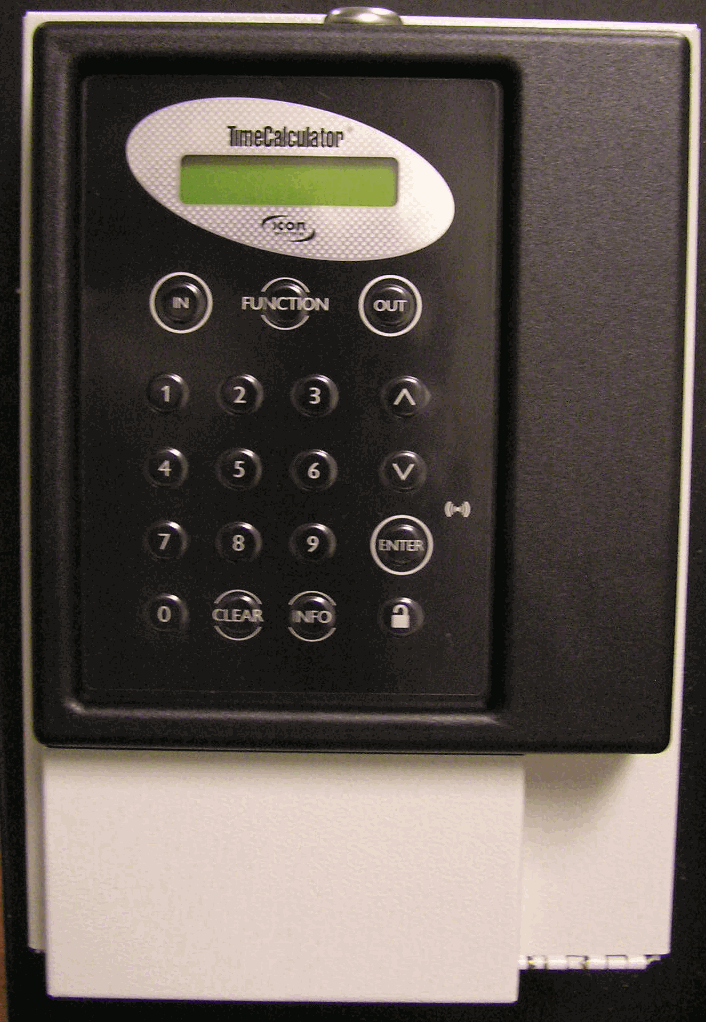

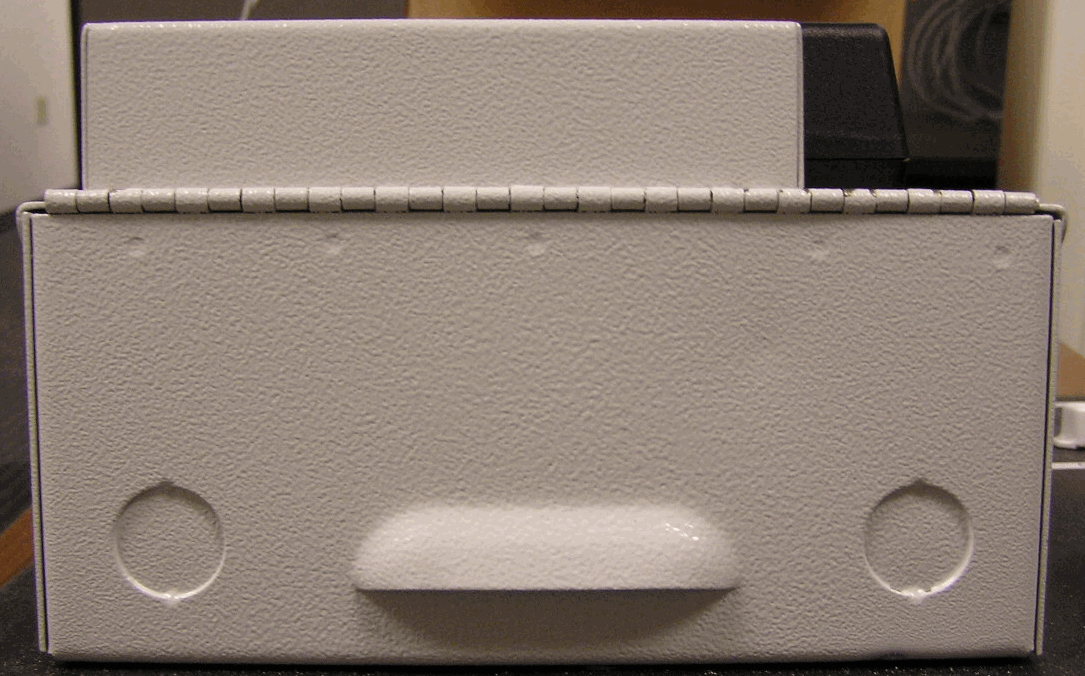

Click on the Links below to view images of the Signal Control Mounting bracket and time clock.

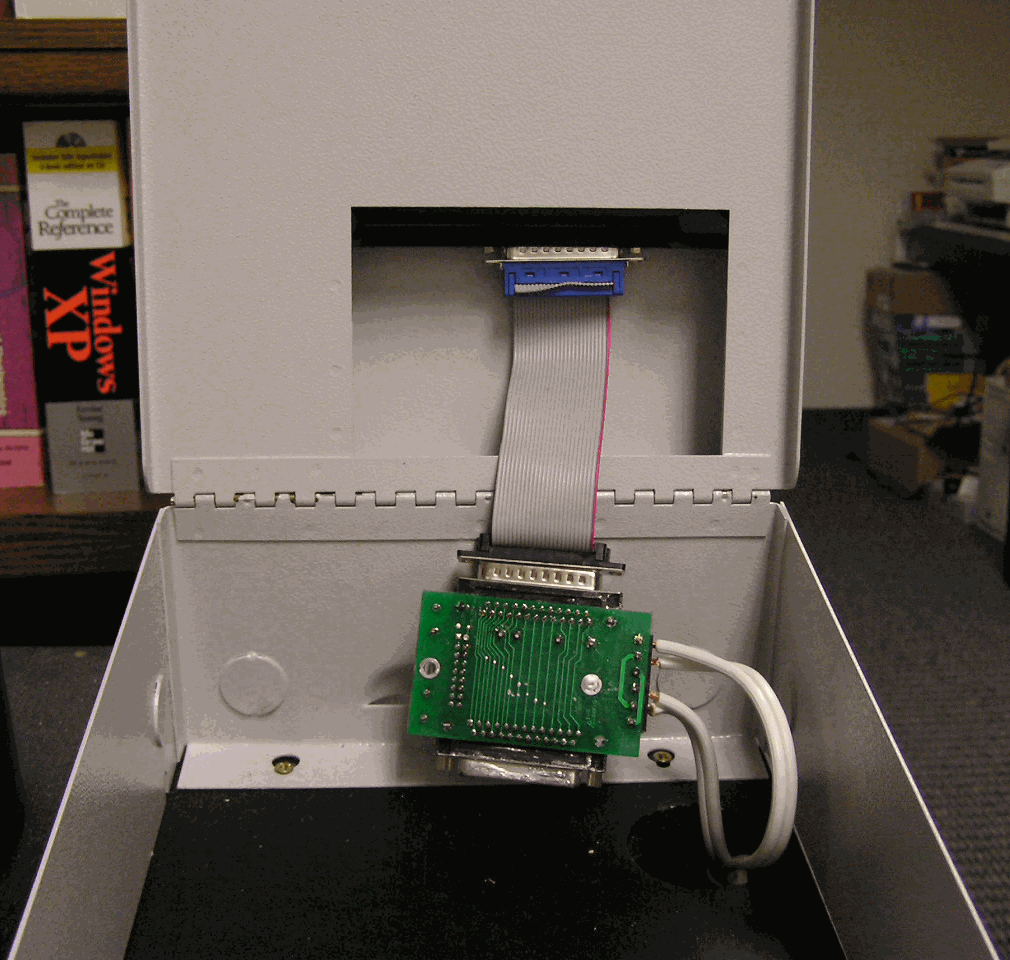

Click on a Links below to view images of the Signal Control Module and clock connection.

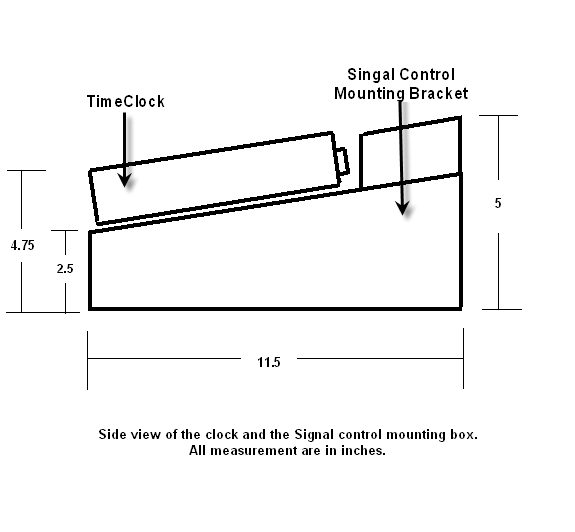

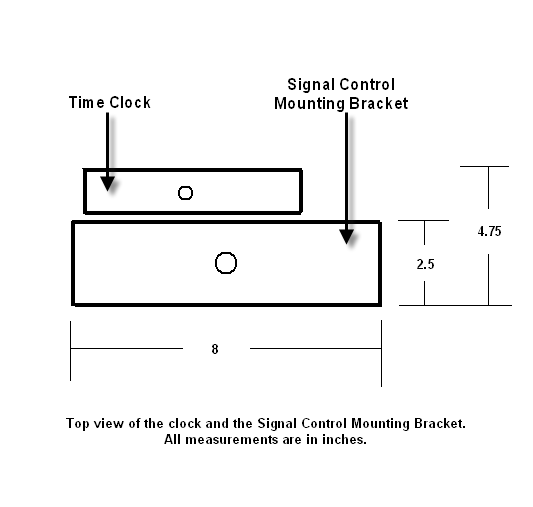

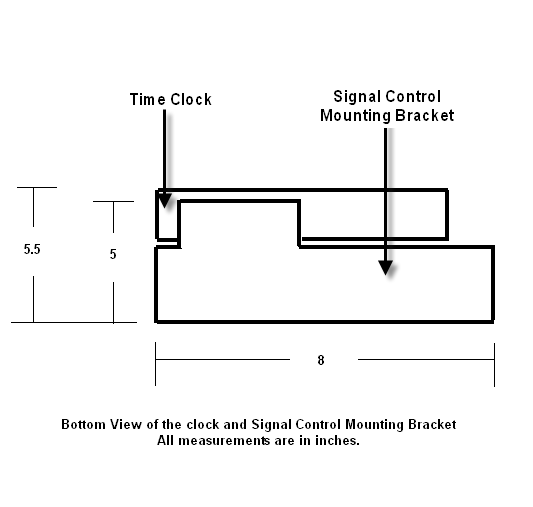

Click on a Links below to view line images of the Signal Control Mounting Brackets dimensions.
Click on the Link below to view a line diagram showing the Signal Control Module wiring.
Click on the Link below to view the Signal Control instructions.
